Model Specifications:
Finished Model is approximately 19-3/4” long 8” high – 5-3/4” wide Trailer 3’ 2” Long
A rough and tumble toy for kids to play. With the look of the real thing.



Please Note The Tank Loader plan set is now the bonus plan and not the Low loaded trailer. The Oshkosh M1070 Truck would have a Tank Loader and not a Low loaded trailer so now the plan set as been updated to Tank Loader.

Send me a Email and i will send the The Tank Loader plan set for free to you.

Watch the video on YouTube: https://youtu.be/oI1Whv3FHGQ
The Wood Toy can be made with – Softwood, Hardwood, MDF, or Plywood.

PDF Specifications
PDF: - 105 pages: - Full of high quality 3D renders & How to's. For easy build & assembly
Pages format: - A4
Measurements: – inches - Comes with inches -into-mm -conversion-chart
Wood parts quantity: - 50 Truck Trailer 17

PDF Content:
1. High quality 3D renders
2. How to's for fun and easy assembly
3. High quality 3D renders orthographic view of all assembly
4. All the parts in the plans come with dimensions in inches.
5. Tools required: Electric hand drill, Scroll saw.
The plans all include how-to and high quality 3D renders for assembly fun and easy for a quick build

You can print this plans on your own printer. Use no scaling on print output.
Once you pay for the plan set it is instant Digital Downloaded to you.

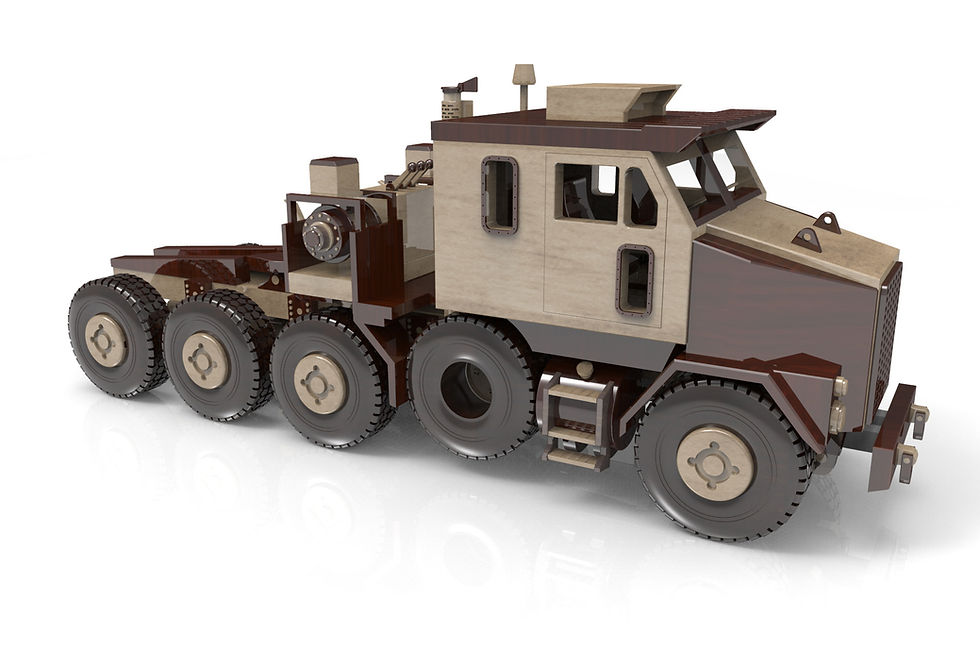

Oshkosh M1070 Truck

£17.00Price
